Function: Blade Grinding & Sharpening , bamboo stick machines, bamboo machine
Bamboo Toothpick Machine Production Line is consisted by the following machines,
Main Machine List
NO.
Name
Qty. Suggested
1
ZG-1 Raw Bamboo Sawing Machine
1 SET
2
ZP-2500 Bamboo Splitting Machine
1 SET
3
MZP-3 Fixed Width Slicer
2 SETS
4
MZP-1 Small Layering Machine
2 SETS
5
MBZS-5 Bamboo Wool Slicer (stick making)
3 to 4 SETS
6
BJQ-6 Precise Cutting Machine
1 SET
7
BPG-1G Toothpick Polishing Machine
2 SETS
8
BXJ-1 Toothpick Sharpening Machine
(Speed 2500 to 3500 pcs per minute for 1 set machine)
2 to 4 SETS
9
TZQ-020 Medium type blade Sharpening Machine
1 SET
As a start, you can consider buying each machine 1 set.
Auxiliary Equipment You May Need
NO.
Name
Qty. Suggested
10
Hot Air Stove (heat supply) for stick drying RFL-70
1 SET
11
Stainless Steel boiling tank (SST-200)
2 SET
12
Electric Hoist
1 SET
13
Bricks and accessories for stainless steel tank
2 SET
Toothpick Packing Machine Options
NO.
Name
Qty. Suggested
14*
PZJ-1 Toothpick Container Packing Machine
(filling toothpick plastic container) -suggested
1 SET
15
GZ-30 Toothpick Filling Machine (by weight)
1 SET
16
GZ-BZ2 Toothpick Packing Machine (1 pc/bag)
3 side sealing type, 2 colors
1 SET
17
GD-BZ1 Toothpick packing machine ( 1pc/bag)
4 side sealing type, 2 colors
1 SET
1.If you order each machine one set, the capacity for double pointed toothpick is about 1,200,000 PCS
2.Working voltage: Except the toothpick packing machine, Other machine is working under three phase.
In China, it is 380V, 50HZ (Three phase). If your working voltage is different, pls kindly inicate.
3.There are two types of bamboo toothpick, one is single pointed and another is double pointed, which type
Our bamboo machinery mainly has the following series
We will provide the machine photos, accessories and packaging pictures for our customers, etc. to the customer
per 8 hours.
you want to make?
beforeshipment. Our machinery (Besta machine) is mainly exported to India, Indonesia, Thailand, Myanmar, Nigeria,
Tanzania, Cameroon, Brazil, Mexico and Colombia. Our company's bamboo machinery has always insisted on
innovation and continuous research and development of new machines, as well as better performance equipment.

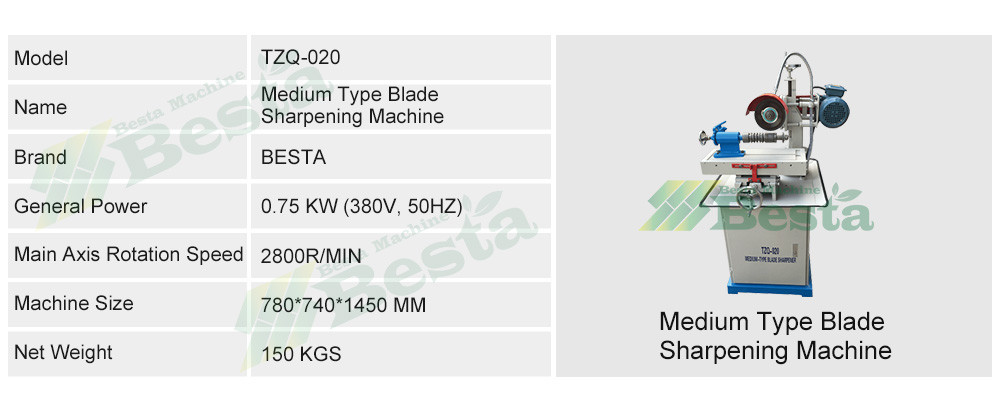

Function of this machine:
The main function of this machine is for sharpening SHAPING BLADE,
FLAT BLADE, LAYERING BLADE AND JIANMEN BLADE ETC.
|
General Motor |
0.75kw |
|
Water Pump Power |
90 W |
|
Main Axis Rotating Speed |
2800 R/MIN |
|
Diameter of the blade |
80 to 160 MM |
|
Net Weight |
115 KGS |
|
Gross Weight |
130 KGS |
|
Mechanical Size |
780*740*1450MM |
|
Packing Size |
840*870*1590MM |
|
CBM |
1.16 M3 |
Bamboo Toothpick Machine Production Line is consisted by the following machines,
Main Machine List
|
NO. |
Name |
Qty. Suggested |
|
1 |
ZG-1 Raw Bamboo Sawing Machine |
1 SET |
|
2 |
ZP-2500 Bamboo Splitting Machine |
1 SET |
|
3 |
MZP-3 Fixed Width Slicer |
2 SETS |
|
4 |
MZP-1 Small Layering Machine |
2 SETS |
|
5 |
MBZS-5 Bamboo Wool Slicer (stick making) |
3 to 4 SETS |
|
6 |
BJQ-6 Precise Cutting Machine |
1 SET |
|
7 |
BPG-1G Toothpick Polishing Machine |
2 SETS |
|
8 |
BXJ-1 Toothpick Sharpening Machine (Speed 2500 to 3500 pcs per minute for 1 set machine) |
2 to 4 SETS |
|
9 |
TZQ-020 Medium type blade Sharpening Machine |
1 SET |
As a start, you can consider buying each machine 1 set.
Auxiliary Equipment You May Need
|
NO. |
Name |
Qty. Suggested |
|
10 |
Hot Air Stove (heat supply) for stick drying RFL-70 |
1 SET |
|
11 |
Stainless Steel boiling tank (SST-200) |
2 SET |
|
12 |
Electric Hoist |
1 SET |
|
13 |
Bricks and accessories for stainless steel tank |
2 SET |
Toothpick Packing Machine Options
|
NO. |
Name |
Qty. Suggested |
|
14* |
PZJ-1 Toothpick Container Packing Machine (filling toothpick plastic container) -suggested |
1 SET |
|
15 |
GZ-30 Toothpick Filling Machine (by weight) |
1 SET |
|
16 |
GZ-BZ2 Toothpick Packing Machine (1 pc/bag) 3 side sealing type, 2 colors |
1 SET |
|
17 |
GD-BZ1 Toothpick packing machine ( 1pc/bag) 4 side sealing type, 2 colors |
1 SET |
1.If you order each machine one set, the capacity for double pointed toothpick is about 1,200,000 PCS
per 8 hours.
2.Working voltage: Except the toothpick packing machine, Other machine is working under three phase.
In China, it is 380V, 50HZ (Three phase). If your working voltage is different, pls kindly inicate.
3.There are two types of bamboo toothpick, one is single pointed and another is double pointed, which type
you want to make?
Our bamboo machinery mainly has the following series
We will provide the machine photos, accessories and packaging pictures for our customers, etc. to the customer
beforeshipment. Our machinery (Besta machine) is mainly exported to India, Indonesia, Thailand, Myanmar, Nigeria,
Tanzania, Cameroon, Brazil, Mexico and Colombia. Our company's bamboo machinery has always insisted on
innovation and continuous research and development of new machines, as well as better performance equipment.
